Stainless Steel Architectural Mesh

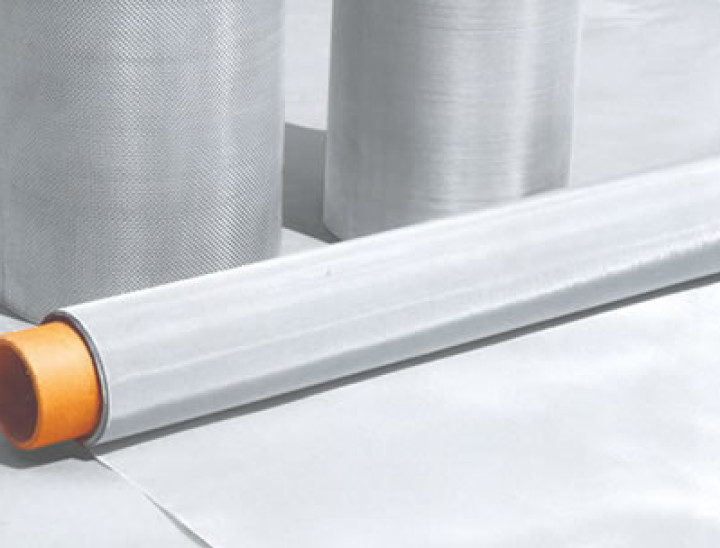

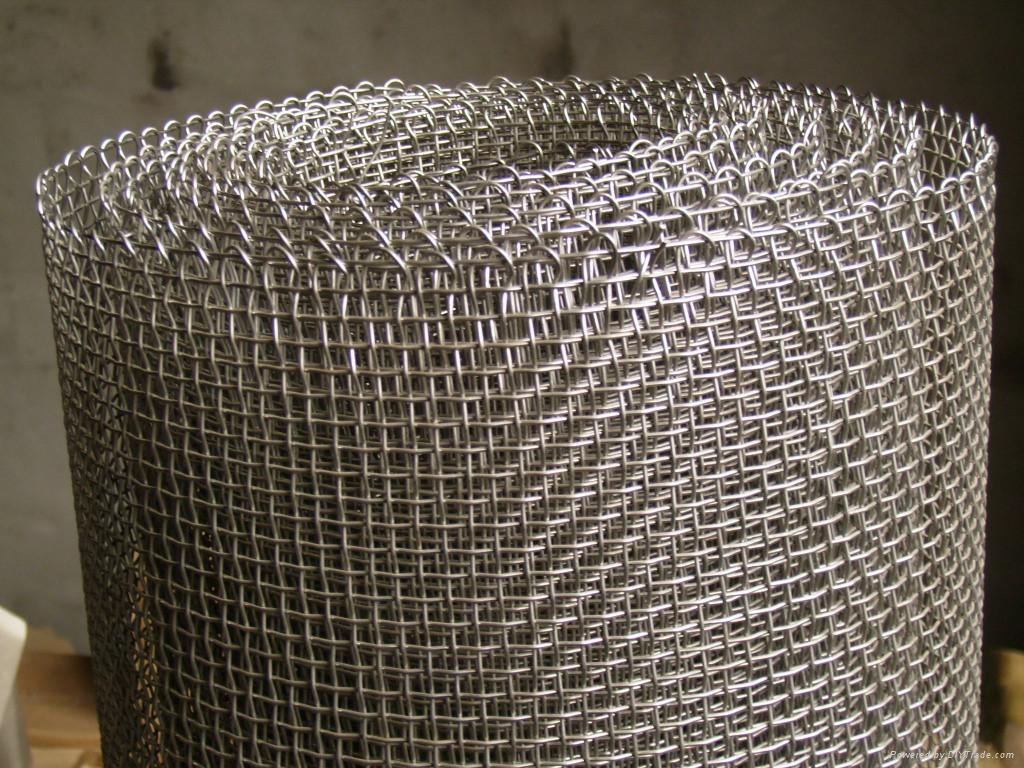

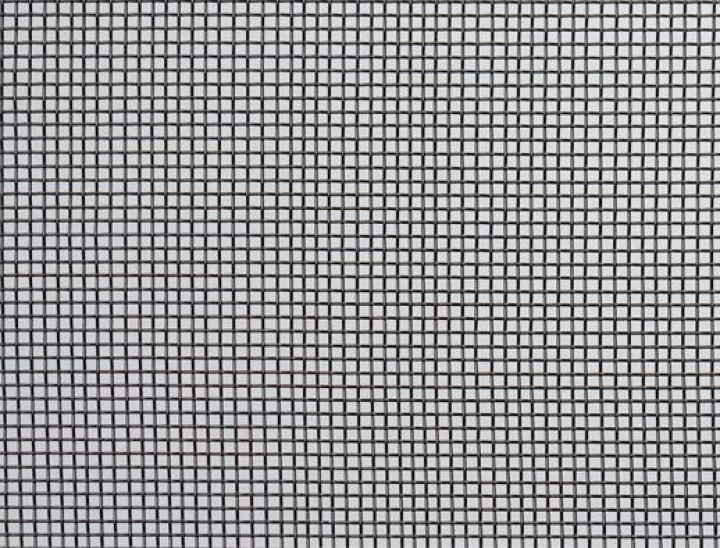

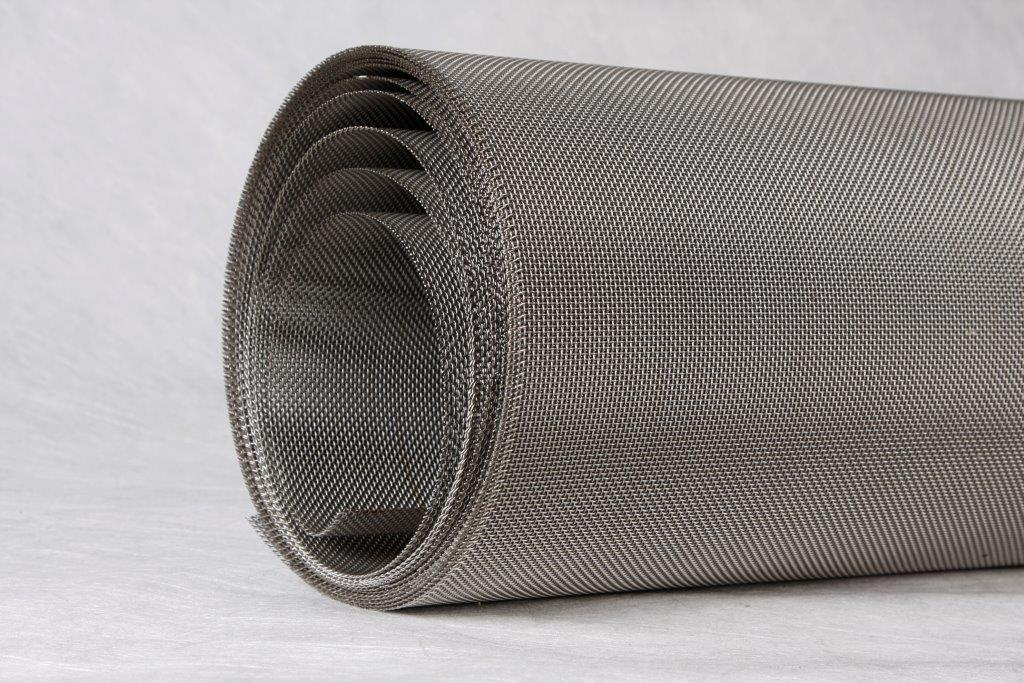

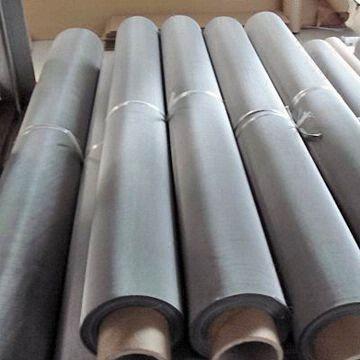

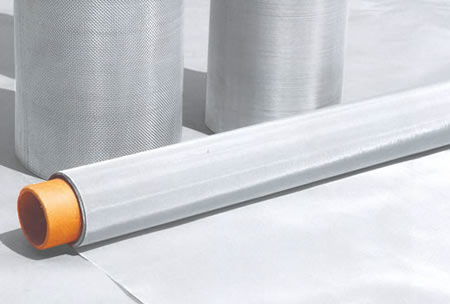

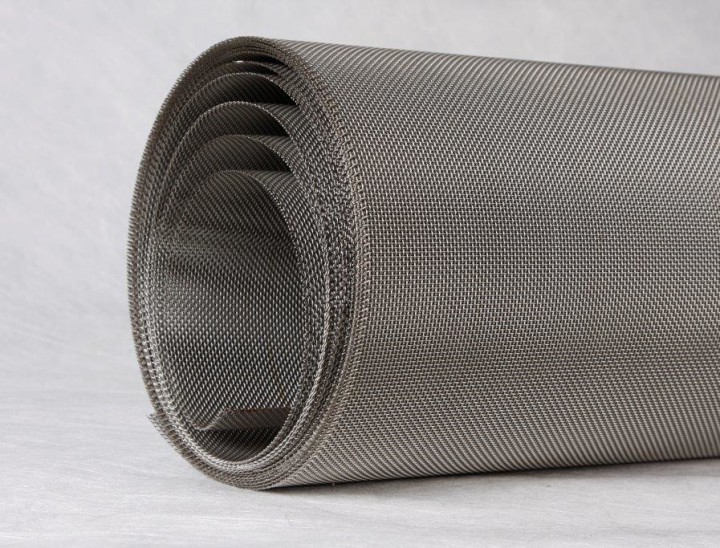

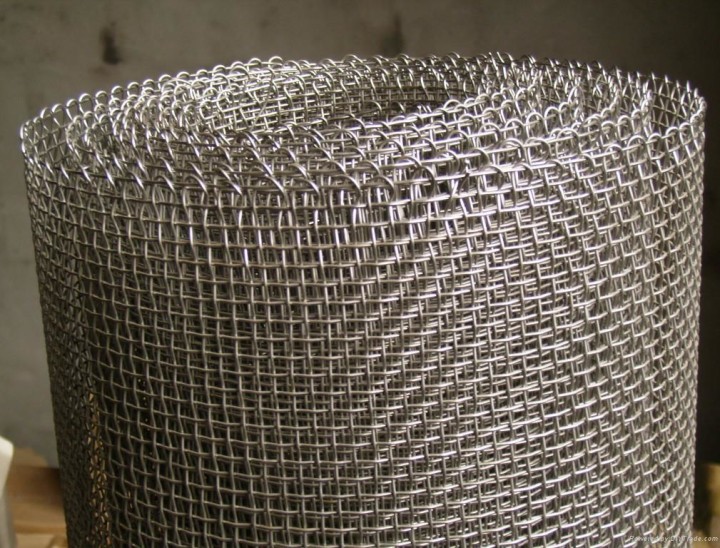

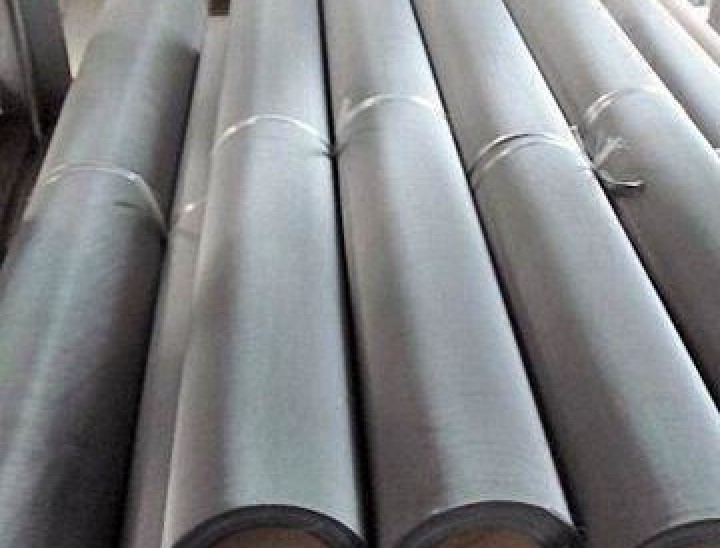

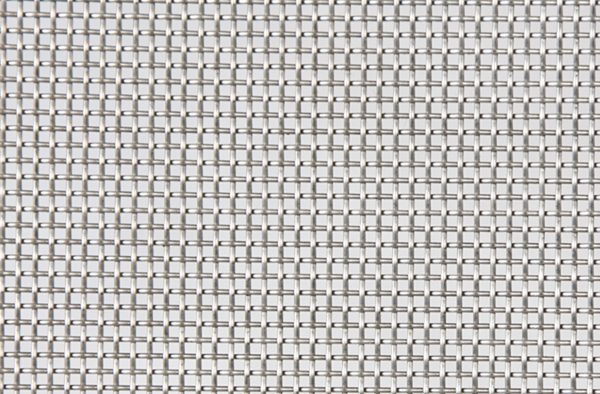

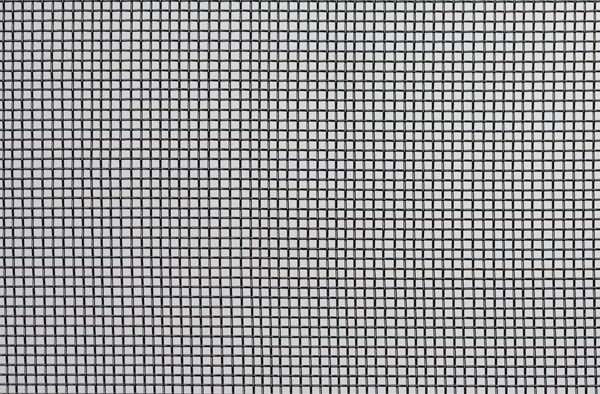

Advanced Engineering Group stock a wide range of Stainless Steel Architectural Woven Wire Mesh available in Grade 304 and Grade 316.

We offer woven wire mesh from our location in Brisbane, also we can organise delivery to any where across Australia.

Stainless steel woven wire mesh is ideal for many architectural applications, both internally and externally. By selecting stainless steel you will utilise its numerous benefits including:

Aesthetic appeal
Long term performance
Minimal maintenance
Strength
Life cycle costing
Low environmental impact

Architectural applications include external mesh facades, ceilings, solar shading, mesh balustrades, decorative screens, partitions, wall cladding, joinery & cabinetry.

Need Pricing? Request a Quote Below

Mesh	SWG	Apt (mm)	Wire (mm)	Width (mm)	Length (Mtrs)	Grade	Weave	Open %
10	20	1.64	0.9	915	30	304	PW	42
10	20	1.64	0.9	1245	30	304	PW	42
10	20	1.64	0.9	1245	30	316	PW	42
10	20	1.64	0.9	1245	2	316	PW	42
10	20	1.64	0.9	1550	30	304	PW	42
10	20	1.64	0.9	1550	30	316	PW	42
8	18	1.98	1.2	1245	30	304	PW	39
8	18	1.98	1.2	1550	30	304	PW	39
4	16	4.75	1.6	1245	30	304	PW	56
4	16	4.75	1.6	1245	30	316	PW	56
4	16	4.75	1.6	1550	30	304	PW	56
3	14	6.47	2	1245	30	304	LC	58
3	14	6.47	2	1550	30	304	LC	58
3	16	6.87	1.6	1245	30	304	LC	66
3	16	6.87	1.6	1245	30	316	LC	66
3	16	6.87	1.6	1550	30	304	LC	66
3	12	8	2.5	1550	30	304	PW	58
2	12	10.2	2.5	1245	30	316	LC	65
2	14	10.7	2	1245	30	304	IC	71
2	14	10.7	2	1245	30	316	IC	71
2	14	10.7	2	1550	30	304	IC	71
2	16	11.1	1.6	1245	30	316	IC	76
1.6	10	12.88	3	1245	30	316	LC	66
3/4	12	16.5	2.5	1245	30	316	IC	75
1	10	22.25	3.15	1245	30	304	IC	77
1	10	22.25	3.15	1245	30	316	IC	77
1	10	22.25	3.15	1830	30	316	IC	77
1	10	25	3.15	1600	30	304	IC	79

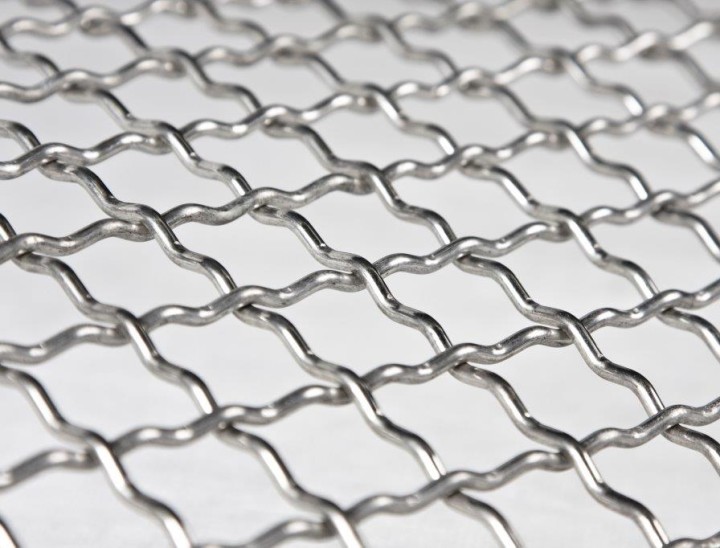

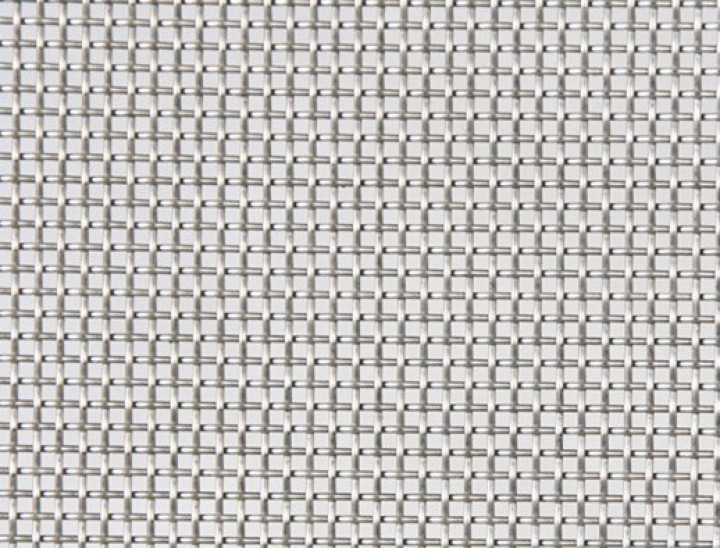

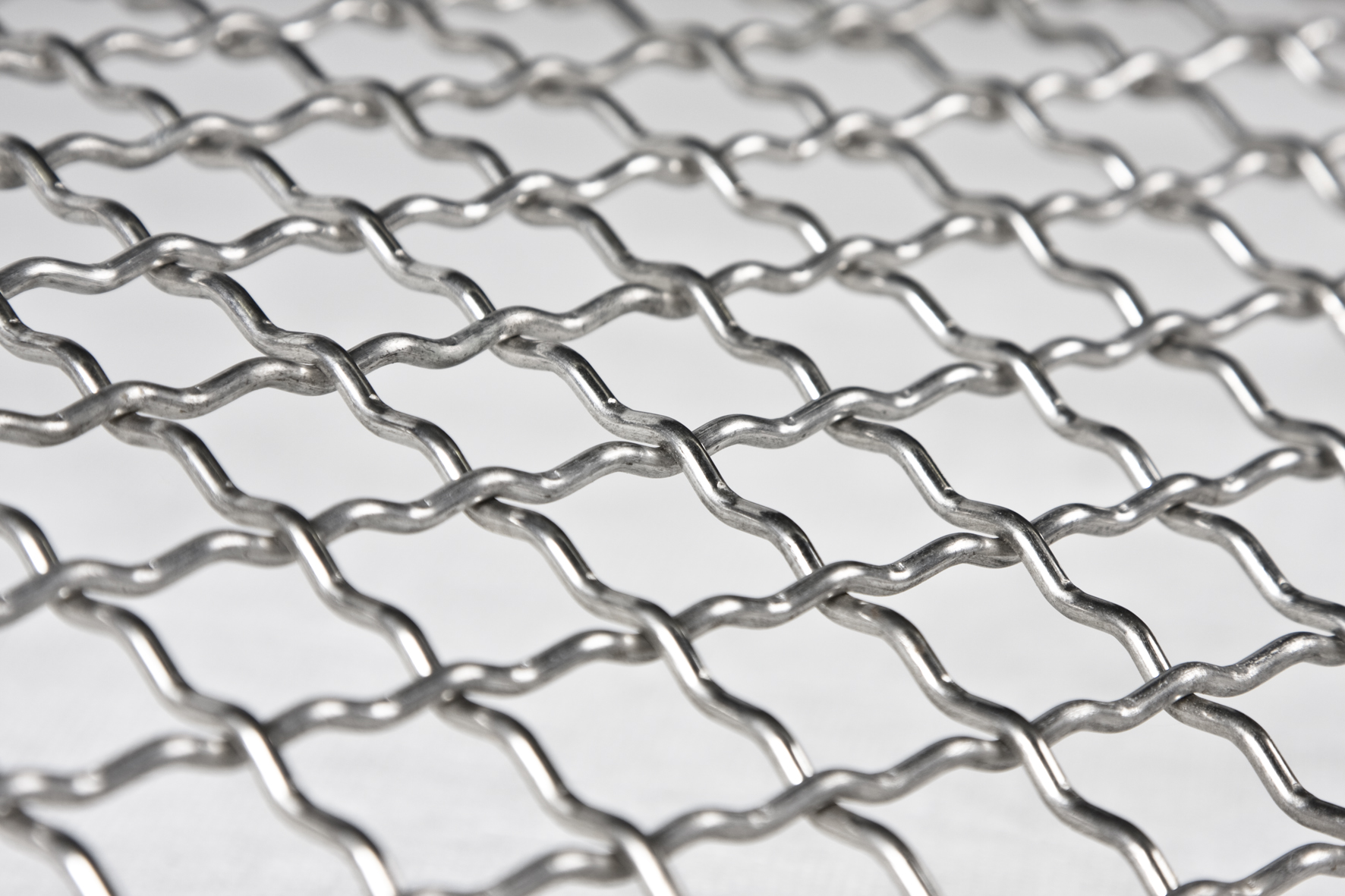

Weave - Plain, Twill, Lock Crimp & Inter Crimp Weave

Length/Width - 915mm/1245mm/1550mm Wide Roll = 2 Lineal metres Minimum Supply (Then sold in multiples of 1 metre)

Finish - Mill Finish (Raw Stainless Steel)
